Smart PLC Control + Remote Diagnostics: How TAIXIANG Makes PET Blow Molding Machine Operation and Maintenance Simpler
In the modern plastics packaging industry, bottleneck problems are rarely about the mechanical hardware alone. Instead, global beverage manufacturers, cosmetic packagers, and water bottling plants face critical challenges in operational friction: unexpected downtime, scarcity of skilled machine operators, and delayed technical support.
As a premier PET blow molding machine turnkey solution expert, TAIXIANG MACHINE has systematically re-engineered factory workflows. By deeply integrating Smart PLC Control Systems with Cloud-Based Remote Diagnostics, TAIXIANG's next-generation automatic PET blow molding machines shift the paradigm from reactive maintenance to intelligent, predictive production.
The Core Dilemma in Modern PET Bottle Production
Traditional stretch blow molding equipment demands constant manual monitoring. A single variance in preform heating temperature or a slight pressure drop during the high-pressure blowing stage (typically 30-40 bar) can result in thousands of defective bottles, compromised material distribution, or catastrophic mold damage. When an unexpected error occurs, factories traditionally have to wait days for an overseas engineer to fly in, bleeding thousands of dollars per hour in lost productivity.
Industry Impact: According to global manufacturing benchmarks, unplanned downtime cuts Overall Equipment Effectiveness (OEE) by an average of 15-20% in plastic packaging factories. TAIXIANG’s smart automation direct addresses this gap.
1. Human-Centric Smart PLC Control: Eliminating Operator Errors

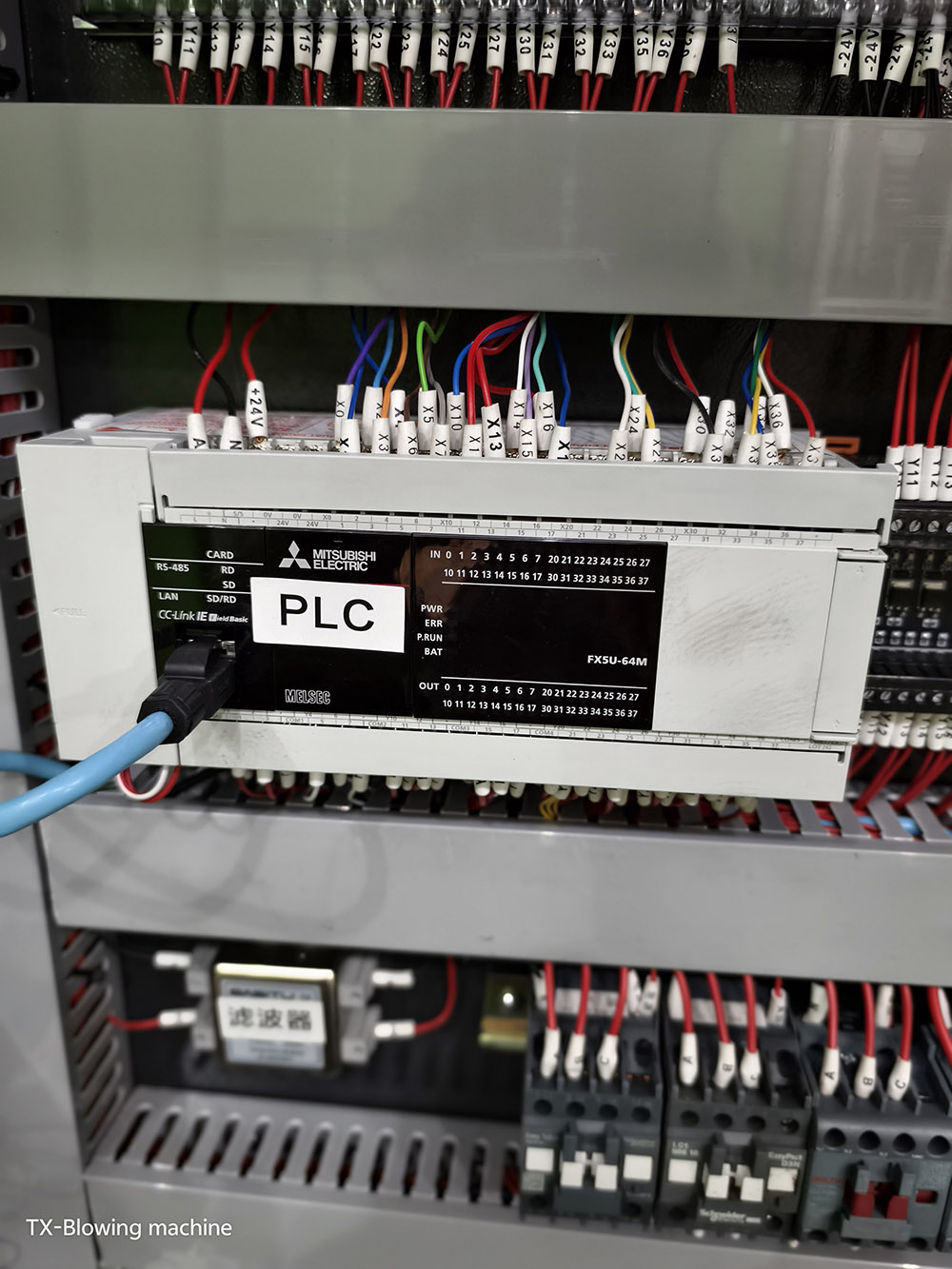

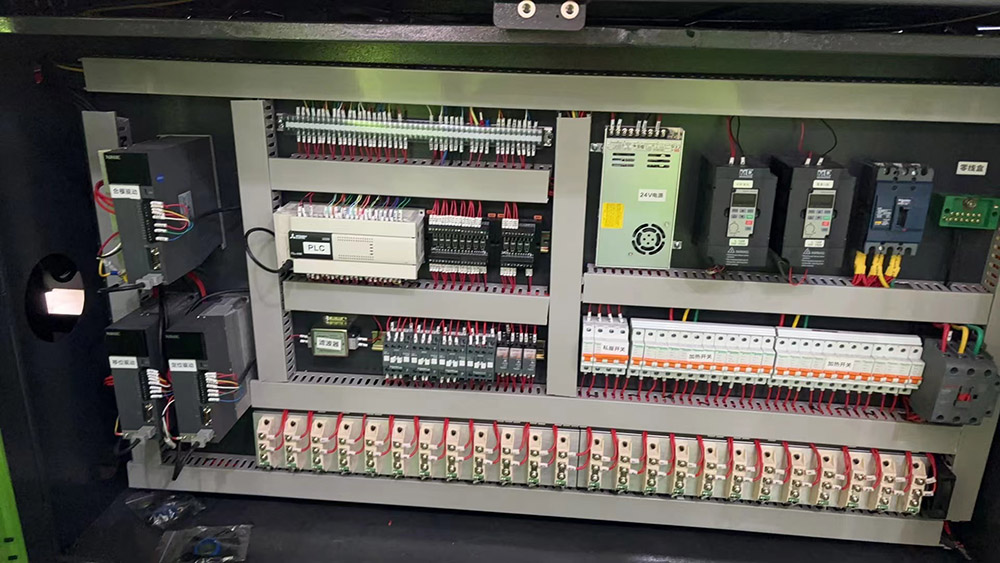

TAIXIANG's automatic PET blow molding machines feature customized, high-speed PLC (Programmable Logic Controller) architectures paired with an intuitive, multi-lingual Human-Machine Interface (HMI). Rather than navigating cryptic machine codes, operators interact with a visual dynamic system.
Key Features of TAIXIANG Smart Control:
- One-Touch Formula Memory System: Store up to 100+ distinct bottle profiles (varying in preform weights, neck sizes, and blowing volumes). Switching from a 500ml water bottle mold to a 2L carbonated soft drink mold requires just a few taps, automatically configuring the preform feeding speed, heating zone voltages, and stretching rod strokes.

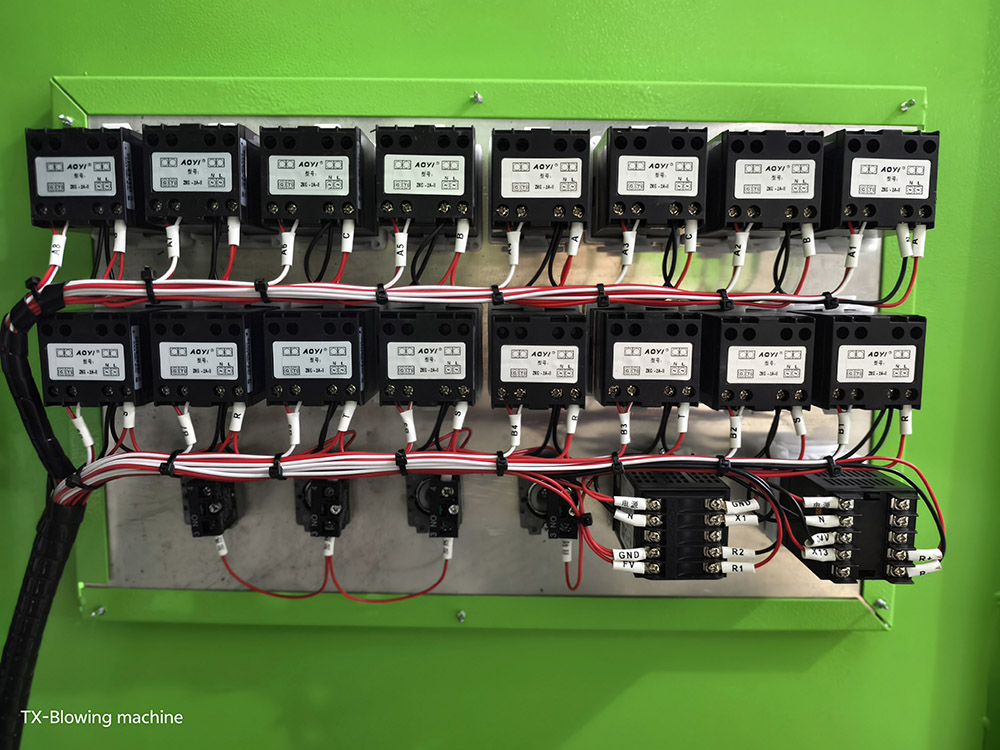

- Closed-Loop Layered Infrared Heating Control: The PLC continuously cross-references real-time surface temperatures of the preforms via infrared sensors. If environmental factory temperatures fluctuate, the system autonomously adjusts individual lamps in the heating oven to guarantee consistent material distribution.
- Real-Time Synchronized Precision: The PLC commands advanced servo-driven clamping and stretching mechanisms, securing timing accuracies down to milliseconds. This precise synchronization eliminates mechanical overlapping and drastically reduces structural wear.
2. Cloud-Based Remote Diagnostics: A Global Support Network in Real Time
What happens if a complex technical fault occurs? With TAIXIANG’s IoT-enabled Remote Diagnostics platform, physical distance becomes irrelevant. Every TAIXIANG automatic stretch blow molding machine can be securely linked via Wi-Fi or 4G/5G industrial gateways to our centralized cloud support network.
How Remote Assistance Visualizes Field Support:
Through secure, encrypted telemetry data, TAIXIANG’s engineering team in China can perform comprehensive system health checks overseas. Here is how it works:
- Instant Online Troubleshooting: Our remote service experts can access the PLC error logs, track IO (Input/Output) signals, and pinpoint whether an anomaly stems from a faulty proximity sensor, a pneumatic valve delay, or a mechanical misalignment.
- OTA Software Upgrades: Firmware enhancements, optimization algorithms, and new functional sequences can be deployed Over-The-Air (OTA) directly to your factory floor without interrupting production schedules.
- Predictive Maintenance Alerts: The system monitors servo motor currents, cycle counts, and pneumatic pressure trends. It proactively alerts your on-site maintenance crew *before* a component fails (e.g., notifying them to replace high-pressure seals after a specific million-stroke milestone).
Technical Comparative Analysis: TAIXIANG vs. Legacy Systems
| Operational Metric | Standard Blow Molding Equipment | TAIXIANG Smart Systems |
|---|---|---|
| Mold Changeover Time | 2 to 4 Hours (Manual Calibration) | Under 30 Minutes (One-Touch Formula Load) |
| Fault Resolution Time | Days (Awaiting On-Site Technician) | Minutes to Hours (via Remote Diagnostics) |
| Average Scrap Rate | 1.5% - 3.0% (Due to heating variances) | Less than 0.3% (Closed-loop smart monitoring) |
| Energy Efficiency | Baseline Usage | Up to 30% Savings via optimized PLC oven cycle timers |
TAIXIANG MACHINE: Your Trusted Partner in PET Packaging Automation
As a leading PET blow molding machine factory, TAIXIANG MACHINE does not just sell hardware; we engineer comprehensive production ecosystems. Our commitment spans from layout design and custom preform design to high-speed blow molds and synchronized downstream integration.
Whether you operate a high-output rotary PET blowing line or an energy-efficient linear automatic stretch blow molding machine, our Smart PLC and Remote Support systems ensure your factory runs smoothly 24/7/366, maximize your return on investment, and keep your production lines moving forward.
