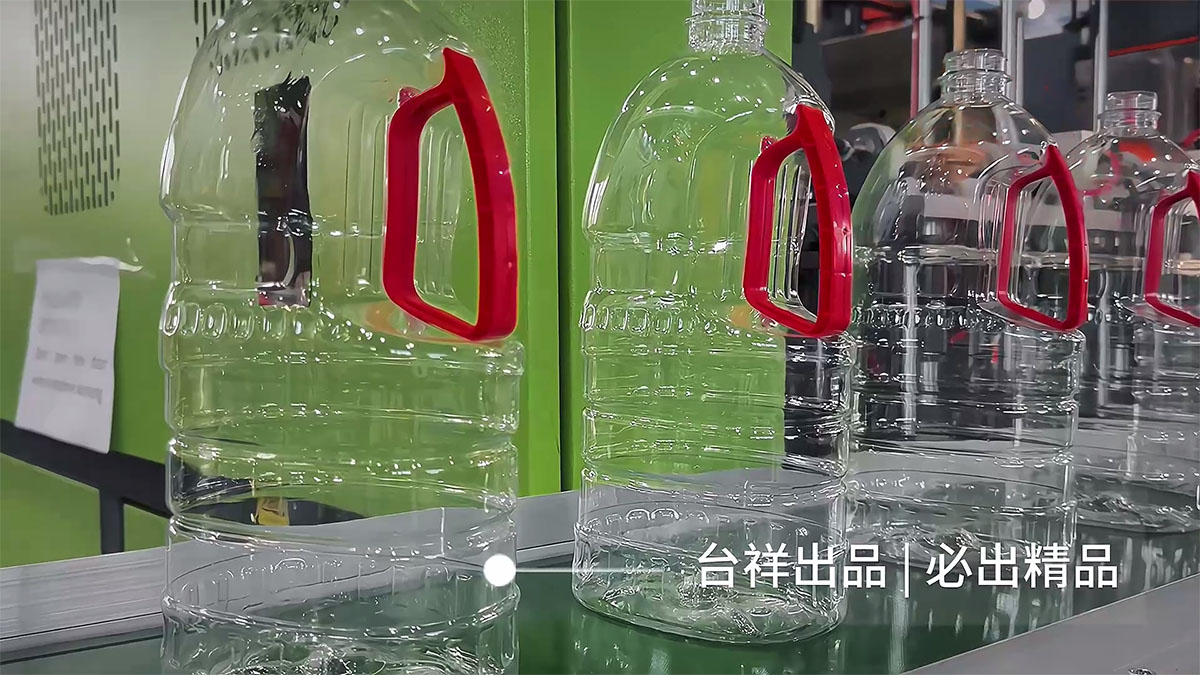

Production Challenges and Breakthroughs for Handle-Equipped PET Oil Bottles: TAIXIANG's Customized Blow Molding Solutions
Published by: TAIXIANG MACHINE Technology Editorial
The global edible oil packaging industry is witnessing a massive shift towards large-capacity PET containers. PET (Polyethylene Terephthalate) has become the material of choice due to its crystal-clear transparency, lightweight nature, and excellent impact resistance. However, when it comes to medium and large-capacity cooking oil bottles (typically 3L to 5L or more), integrating an ergonomic handle introduces severe engineering and manufacturing complications. As a premier PET blow molding machine manufacturing factory, TAIXIANG MACHINE has developed pioneering, highly customized stretch blow molding solutions that directly eliminate these industry bottlenecks.
The Technical Pain Points of Handle-Equipped PET Oil Bottles
Unlike standard symmetrical water or beverage bottles, producing large-capacity PET oil bottles with integrated or inserted handles presents unique material distribution and structural challenges:
- Asymmetric Material Distribution: Large edible oil bottles often feature rectangular, square, or complex ergonomic shapes. During the high-speed stretch blow molding process, the material has to travel different distances to reach the corners and the handle recess zones. This easily leads to uneven wall thickness, weak spots, and optical haze.
- The Grip Deep-Recess Dilemma: To allow consumer fingers to wrap securely around a handle, the bottle body requires a deep-recess groove. Standard blow molding techniques often struggle to force the PET material deeply into these narrow mold contours, causing thinning at the stress points or structural deformation under filling loads.
- Handle Integration and Production Efficiency: Whether utilizing integrated blow-molded handles or automated external handle insertion, synchronizing the mechanical positioning with the rapid blowing cycle requires absolute coordination. Any delay drops overall equipment effectiveness (OEE) and spikes the scrap rate.
TAIXIANG's Customized Breakthroughs: Engineering the Perfect Blow Molding Solution
At TAIXIANG MACHINE, we don't believe in "one-size-fits-all" hardware. To help cooking oil packaging enterprises achieve lightweighting targets without sacrificing container integrity, our R&D team has engineered advanced, customized automatic and semi-automatic PET blow molding platforms.
1. Multi-Zone Intelligent Infrared Preform Heating
The secret to perfect wall thickness in non-cylindrical oil bottles lies in the thermal profile of the preform. TAIXIANG's customized blowing machines feature an optimized, independently adjustable layered infrared heating system. By precisely modulating the temperature across different zones of the preform, we ensure that denser material is directed exactly where the deep-recess handle grooves and bottle corners require reinforcement.
2. High-Pressure Compensation & Advanced Mold Design
To capture sharp contours and flawless brand logos on large 5L containers, TAIXIANG utilizes high-pressure air blowing systems complemented by advanced CNC-machined blowing molds. Our molds are designed with tailored internal cooling channels to guarantee uniform temperature dissipation, shorter cycle times, and the elimination of sink marks around heavy handle-attachment rings.
3. Seamless Automated Handle Insertion Technology
For large oil bottles requiring post-blown handle synchronization, TAIXIANG offers fully automated linear blow molding setups integrated with precision robotic handle-feeding mechanisms. The handles are locked into position with millisecond accuracy immediately during or right after the stretch-blowing phase, ensuring high-speed continuous production (ranging from 1,500 BPH up to 8,000+ BPH depending on cavity configurations) with zero manual intervention.
Why Packaging Leaders Partner with TAIXIANG MACHINE
As an expert turnkey solutions provider, TAIXIANG MACHINE bridges the gap between raw productivity and custom engineering. Our stable servo-driven architectures drastically reduce energy consumption while maintaining highly accurate repeatability.
Turnkey Manufacturing Advantage: From custom preform mold development and bottle design prototyping to high-speed automatic blow molding machine commissioning, TAIXIANG provides comprehensive, end-to-end technical support to maximize your factory's ROI.
