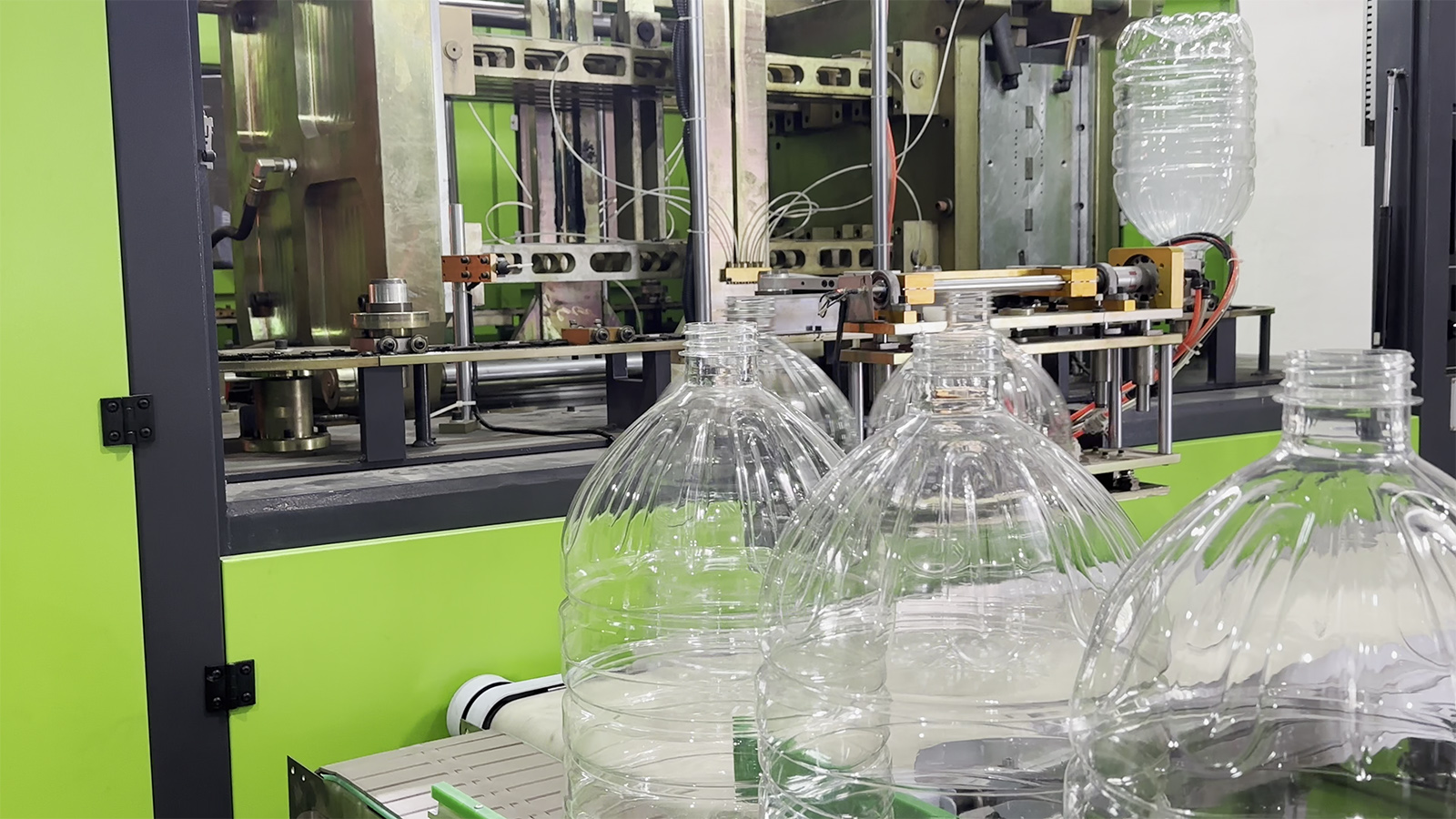

How to Select the Right PET Blow Molding Machine? TAIXIANG Experts Share Equipment Selection Guide for 5L-20L Edible Oil Bottle Production
The global edible oil packaging market is undergoing a significant shift. With the rising demand for family-sized and commercial-grade packaging, large-capacity PET bottles ranging from 5L, 10L, 15L, to 20L (such as water/oil gibs and one-way kegs) have become the mainstream choice. PET material has successfully replaced traditional HDPE and glass due to its high transparency, lightweight nature, shatter resistance, and 100% recyclability.
However, producing large-capacity 5L-20L edible oil bottles presents unique technical challenges compared to standard 500ml beverage bottles, such as managing heavy preform thick walls, ensuring uniform material distribution, and integrating handle insertion. As a leading professional PET blow molding turnkey solution provider, TAIXIANG MACHINE shares this comprehensive technical guide to help oil producers and packaging factories select the ideal equipment to maximize ROI and production efficiency.
1. Core Challenges in 5L-20L Large PET Bottle Production
Before investing in equipment, it is crucial to understand the physical and thermodynamic challenges unique to large-capacity PET containers:
- Extreme Preform Wall Thickness: A 20L PET bottle preform can weigh between 300g to 700g, with wall thicknesses exceeding 8mm-10mm. Standard heating systems cannot penetrate the core of such thick preforms, leading to crystallization or uneven stretching.
- Material Distribution (Bottom and Corner Thinning): Large containers have a high stretch ratio. If the blowing process is not precisely controlled, the material will pool at the bottom or become too thin at the corners, resulting in bottle deformation, stress cracking, or dropping failures during filling and stacking.
- Heavy-Duty Handle Integration: 5L-20L oil bottles require robust handles for consumer convenience. Manufacturers must choose between integrated neck handles, side-inserted handles, or post-blow manual handles, each requiring different machine configurations.
2. Key Technical Metrics for Selecting a 5L-20L PET Blow Molding Machine
When evaluating suppliers like TAIXIANG MACHINE, technical buyers should focus on the following four core engineering pillars:
A. Advanced Infrared Heating System with Deep Penetration
For heavy preforms used in 10L-20L bottles, a standard short-wave infrared oven is insufficient. Look for machines configured with:
- Layered Independent Temperature Control: At least 8-10 zones of vertical heating lamps, paired with individual SCR (Silicon Controlled Rectifier) power regulators to adjust the temperature profile precisely.
- Preform Internal Ventilation & Cooling: An active air-cooling system inside the heating oven to prevent the outer surface of the preform from overheating or pearlescence while waiting for the inner core to reach the optimal stretching temperature ($110^\circ\text{C} - 120^\circ\text{C}$).
B. Robust Clamping Force and Die-Stabilization Technology
The larger the bottle volume, the greater the internal high-pressure blowing surface area, which generates immense separation force on the mold halves. For 20L bottles blown at 35-40 bar pressure, a clamping system must offer:
- Toggle or Hydraulic-Assisted Clamping: TAIXIANG implements heavy-duty, high-rigidity clamping structures that ensure zero mold-seam expansion, guaranteeing a flawless, faint parting line on the final edible oil bottle.
- Air Compensation System: Utilizes high-pressure air to automatically lock the mold plates tighter during the exact millisecond of the high-pressure blow cycle.
C. Precision All-Servo Driving System
Modern smart factories reject pneumatic-driven large blow molders due to inconsistency and high energy costs. TAIXIANG's high-capacity series adopts a Full Servo System for three critical axes:
| Servo Component | Technical Advantage for 5L-20L Production |
|---|---|
| Servo Preform Feeding & Transfer | Ensures heavy preforms are loaded into the pitch-changing mechanism with millimeter precision, avoiding neck damage. |
| Servo Stretching Rods | Allows programmable, variable-speed stretching. Slow stretch at the beginning and fast at the end ensures uniform material distribution from neck to base. |
| Servo Mold Clamping & Lifting | Drastically reduces dry cycle time, operates smoothly without mechanical shock, and extends mold life span. |
D. Intelligent High-Pressure Air Recovery System (ARS)
Blowing 20L bottles consumes vast amounts of high-pressure compressed air ($3.5 - 4.0\,\text{MPa}$). TAIXIANG machines feature a multi-stage Air Recovery System that recycles up to 25% - 30% of the exhaust air back into low-pressure circuits for machine actuation and pre-blowing. This drastically cuts down factory electricity bills and reduces compressor wear.
3. Choosing Between Linear vs. Rotary Blow Molders for Edible Oil
TAIXIANG experts recommend choosing the machine architecture based on your target annual output:
Linear Automatic Large-Volume Blow Molding Machines: Ideal for mid-sized factories or flexible production lines (5L to 20L on the same machine via quick mold changes). Output ranges from 600 to 2,400 Bottles Per Hour (BPH). Offers excellent cost-to-performance ratio and lower maintenance complexity.
Rotary High-Speed Blow Molding Machines: Best for massive industrial edible oil groups requiring dedicated, high-speed lines for 5L bottles with outputs exceeding 6,000+ BPH. Higher initial investment but lower per-bottle operational costs.
4. Why Partner with TAIXIANG MACHINE?
As a professional PET blow molding turnkey solution expert, TAIXIANG MACHINE doesn't just sell equipment; we deliver customized factory engineering:
- Complete Line Integration: We provide comprehensive upstream and downstream solutions, including high-pressure air compressors, water chillers, preform dehumidifiers, automatic handle insertion systems, and conveyor lines.
- Customized Mold Design: Optimized bottle geometry featuring anti-vacuum panels, specialized ribs to prevent oil bottle collapsing under stacking loads, and lightweight designs to save raw material costs.
- Industry 4.0 Connectivity: IoT-enabled control panels supporting remote diagnostics, predictive maintenance, and real-time OEE tracking, making our equipment highly favored by modern global buyers.
Whether you are setting up a new production line for 5L soybean oil bottles or expanding into 20L commercial catering sunflower oil containers, TAIXIANG's engineering team will tailor the optimal machinery configuration for your brand.
