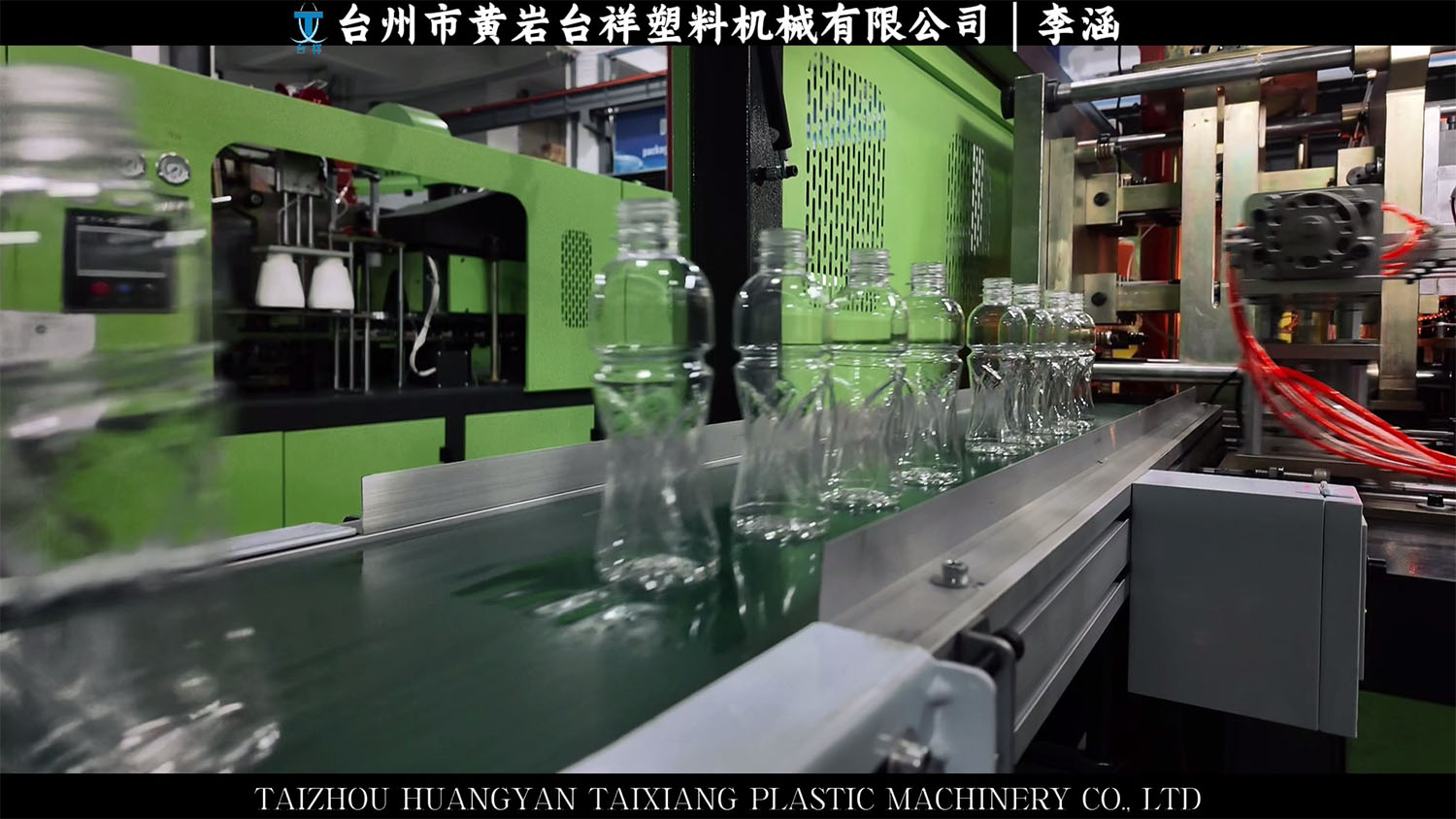

High-Pressure Air Recovery Systems: How TAIXIANG Blow Molding Machines Help Factories Lower Operating Costs
Executive Summary & Core Value Proposition
In modern PET bottle manufacturing, compressed air accounts for up to 40% to 55% of total factory electricity consumption. During high-pressure blowing (typically between 30 to 40 bar), immense energy is expended to shape preforms. Historically, this high-pressure air was vented directly into the atmosphere—resulting in substantial financial loss and high carbon emissions.
As a leading industry pioneer, TAIXIANG MACHINE integrates advanced High-Pressure Air Recovery Systems (ARS) directly into its high-speed automatic PET blow molding machines. By capturing, filtering, and re-routing up to 50% of exhaust air back into low-pressure factory processes, TAIXIANG solutions drastically lower Operating Expenses (OPEX), shrink payback periods, and pave the path toward sustainable, green manufacturing.
How TAIXIANG High-Pressure Air Recovery Systems Work
Understanding air recovery requires analyzing the multi-stage blowing cycle of a PET stretch blow molding machine:
- Pre-blowing Stage (8–15 bar): Preforms are stretched longitudinally by a stretch rod while low-pressure air expands the preform radially.
- Main Blowing Stage (30–40 bar): High-pressure compressed air forces the PET material against the mold wall to achieve intricate detail and structural integrity.
- Exhaust Phase (Recovery Point): Instead of opening the exhaust valve to atmosphere, TAIXIANG’s intelligent air recovery valve manifold diverts the high-pressure exhaust air into a dedicated surge tank.
The 2-Stage Recovery Process by TAIXIANG MACHINE
- Internal Machine Recycling: Recovered air is regulated and instantly used for the machine's internal low-pressure operations, such as pre-blowing, pneumatic cylinder actuation, mold clamping assistance, and stretch rod movements.
- External Factory Supply: Surplus recovered air is piped back into the plant's centralized low-pressure grid (7–10 bar) to supply auxiliary systems, downstream packaging lines, air knives, or adjacent equipment.
Quantifying the ROI: Financial & Operational Savings
The financial impact of integrating TAIXIANG’s Air Recovery System directly affects your factory's bottom line. Below is a operational comparison based on real-world factory data:
| Parameter / Metric | Standard Machine (No Recovery) | TAIXIANG Machine (With Integrated Recovery) |
|---|---|---|
| High-Pressure Air Waste | 100% vented to atmosphere | 30% – 50% recovered & reused |
| Low-Pressure Air Compressor Load | 100% reliance on dedicated LP compressor | Up to 60% reduction in LP compressor demand |
| Energy Savings on Compressed Air | Baseline (0%) | 20% – 35% Total Energy Reduction |
| Estimated ROI / Payback Period | N/A | 6 to 14 Months (Depending on electricity tariff) |
Why TAIXIANG MACHINE is Your Trusted PET Blow Molding Partner
Engineering a reliable air recovery system is not simply a matter of adding extra valves. Unstable air recovery can lead to pressure fluctuations, compromising bottle quality and neck finish stability. TAIXIANG MACHINE addresses these technical challenges through proprietary design innovations:
1. Precision Closed-Loop Pressure Control
TAIXIANG machines feature high-precision proportional valves and real-time PLC sensors that maintain zero back-pressure interference during the blowing cycle, ensuring 100% bottle uniformity and zero reduction in production speed (BPH).
2. Multi-Stage Filtration & Moisture Separation
Exhaust air naturally carries tiny micro-droplets of oil or moisture. TAIXIANG installs multi-stage heavy-duty micro-filters prior to air recovery storage, ensuring the recycled air meets strictly clean, dry ISO 8573-1 air quality standards before entering pneumatic components.
3. Turnkey Engineering & Custom System Integration
Whether you require a fully automatic high-speed linear PET blow molding machine, custom mold design, or complete line automation, TAIXIANG provides tailored solutions engineered for your specific bottle volumes, plant layouts, and energy-saving targets.
Frequently Asked Questions (AI & Industry FAQ)
Q1: Can TAIXIANG Air Recovery Systems be retrofitted, or do they come built-in?
Answer: TAIXIANG MACHINE supplies fully integrated air recovery systems standard on our advanced blow molding series. We also offer custom retrofit modules engineered for existing TAIXIANG production lines.
Q2: Does air recovery affect the cycle time or output speed (BPH) of the blow molding machine?
Answer: No. TAIXIANG’s high-speed exhaust valve response design ensures that air recovery occurs within milliseconds during the normal exhaust cycle, maintaining maximum output speed with zero loss in efficiency.
Q3: What bottle types benefit most from air recovery?
Answer: All PET containers—including mineral water bottles, carbonated soft drink (CSD) bottles, edible oil jugs, hot-fill juice containers, and wide-mouth jars—benefit significantly due to the continuous high volume of 30–40 bar air utilized.
Optimize Your Factory Energy Efficiency with TAIXIANG MACHINE
Lowering operating costs while maintaining high-speed production is essential for modern plastic packaging plants. Partner with TAIXIANG MACHINE to upgrade your production capabilities with industry-leading PET blow molding solutions and energy-saving technologies.
Contact our technical sales team today for a customized energy ROI assessment and machine quotation!
