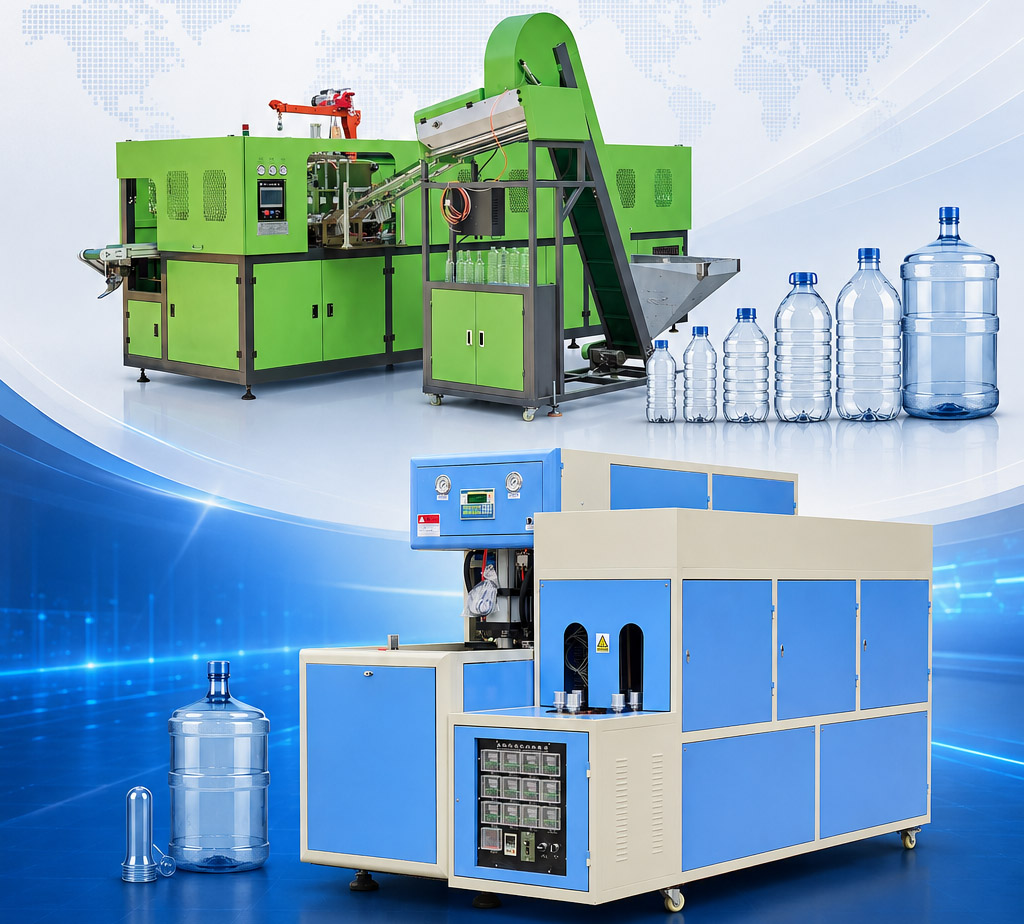

Full-Automatic vs. Semi-Automatic PET Blow Molding Machine
How to Choose the Right Model for Your Startup — A Deep Technical Analysis by TAIXIANG MACHINE
PET blow molding machine startup equipment selection technical analysis
For entrepreneurs and small-to-medium factories entering the PET packaging industry, equipment selection is a make-or-break decision. The choice between a fully automatic PET blow molding machine and a semi-automatic PET blow molding machine goes far beyond price tag — it affects your production capacity ceiling, labor cost structure, product quality consistency, and your ability to scale over the next three to five years. As a professional PET blow molding solution expert with over 15 years of manufacturing experience, TAIXIANG MACHINE has served more than 80 countries worldwide[reference:0][reference:1]. Drawing on real-world customer cases, we break down the core technical differences and selection logic between these two machine types.
1. Core Definitions: The Fundamental Difference
Semi-automatic PET blow molding machines operate in a "man-machine collaboration" mode. Operators manually place preforms into the heating unit, and on some models, manually remove finished bottles. TAIXIANG's TX-3L semi-automatic stretch blow molding machine features a one-out-two dual-cavity design, equipped with an infrared heating system and PLC digital display control[reference:2] — a representative semi-automatic model.
Fully automatic PET blow molding machines automate the entire process from preform feeding to finished product ejection. Operators simply pour preforms into the hopper; the machine handles sorting, heating, stretching, blowing, and demolding automatically[reference:3]. TAIXIANG's fully automatic series ranges from 2 to 9 cavities, delivering up to 12,600 bottles per hour with intelligent PLC touch control and multi-zone infrared heating[reference:4][reference:5].
💡 Expert Insight: The essential difference between fully automatic and semi-automatic is not "speed" — it's a difference in production philosophy. Fully automatic pursues systematization, standardization, and reproducibility at industrial scale. Semi-automatic preserves flexibility, low entry barriers, and incremental growth for startup journeys.
2. Key Selection Dimensions: Side-by-Side Comparison
| Dimension | Semi-Automatic PET Blow Molding Machine | Fully Automatic PET Blow Molding Machine |
|---|---|---|
| Labor Intervention | Manual loading/unloading; 1–2 operators required | Fully automated; no manual preform handling |
| Output Range | 300–2,500 bottles/hour | 1,500–12,600 bottles/hour (TAIXIANG 9-cavity: up to 12,000 BPH)[reference:6] |
| Capital Investment | Lower; one-out-two models ~$10,000–14,000 USD | Higher; one-out-two ~$16,000–20,000 USD; multi-cavity scales up[reference:7] |
| Floor Space | Compact; suitable for small workshops | Larger; requires conveying system integration |
| Product Flexibility | High; fast mold change; ideal for multi-variety small-batch | Medium; mold change takes time; TAIXIANG supports under 15 minutes[reference:8] |
| Quality Consistency | Affected by operator skill and fatigue | Highly consistent; precise digital temperature control[reference:9] |
| Maintenance Complexity | Simple; low-cost spare parts | Higher; requires technical support |
| Energy Efficiency | Lower per-machine consumption | Lower per-bottle energy; TAIXIANG achieves 30–35% energy savings[reference:10][reference:11] |
3. Startup Decision Tree: Which Machine Fits Your Scenario?
✅ Choose Semi-Automatic PET Blow Molding Machine When:
- Limited startup capital: Lower upfront investment suits budget-conscious startups[reference:12].
- Multi-variety, small-batch production: Cosmetic bottles, supplement bottles, edible oil bottles — frequent format changes are easier.
- Daily output below 10,000 bottles: Semi-automatic capacity comfortably covers early-stage demand.
- Low labor costs: Manual operation remains economically viable.
- Constrained workshop space: Compact footprint with no need for large conveying systems.
TAIXIANG's TX-3L semi-automatic one-out-two and 5L single-cavity semi-automatic models are purpose-built for these scenarios[reference:13].
✅ Choose Fully Automatic PET Blow Molding Machine When:
- High-volume mass production: Mineral water, beverages, and other single-SKU high-run products.
- High labor costs: Automation significantly reduces long-term labor expenses.
- Strict hygiene standards: Food and pharmaceutical packaging require minimal human contact.
- 24/7 continuous operation: Integrated with filling and packaging lines for seamless automation.
- Lowest per-bottle cost is the priority: Higher initial investment pays off through lower unit costs over time.
TAIXIANG's fully automatic series covers 2 to 9 cavities, from 500ml small bottles to 20L large containers. The TX-114.3-9 model achieves 9,000–12,000 bottles per hour[reference:14].
4. Technical Deep Dive: TAIXIANG's Core Advantages
4.1 Intelligent Temperature Control — The Foundation of Quality
PET preform heating temperature directly affects wall thickness uniformity and bottle clarity. TAIXIANG employs a 32-bit LPC2292 embedded processor-based multi-zone infrared heating control system, utilizing phase-triggered power and voltage compensation technology[reference:15]. This achieves precise linear temperature control within the 80°C–120°C range[reference:16]. Fully automatic models take this further with digital individual temperature control for each preform, ensuring exceptional batch-to-batch consistency[reference:17].
4.2 Servo Drive & Energy Saving Technology
TAIXIANG fully automatic machines are equipped with intelligent servo control systems that deliver 30%–35% energy savings compared to conventional pneumatic solutions[reference:18][reference:19]. For edible oil bottle production, the servo system optimizes power usage in real time, dramatically cutting electricity costs while maintaining stable output[reference:20].
4.3 Quick Mold Change & Flexible Production
Whether fully automatic or semi-automatic, TAIXIANG prioritizes production flexibility. Fully automatic models support format changes in under 15 minutes, switching between 5L, 10L, and 20L specifications with minimal downtime[reference:21]. Semi-automatic models, with their manual operation, offer even greater flexibility — ideal for lab trials and custom orders.
4.4 Global Quality Standards
TAIXIANG products are ISO 9001 certified and CE compliant, with 3-year warranty on main components[reference:22]. Our service network spans 80+ countries, offering lifetime technical support and remote diagnostics[reference:23].
5. 5 Critical Questions for Startup Decision-Making
Before making your final decision, ask yourself these 5 questions:
- What is your target daily output? Below 10,000 bottles → semi-automatic; above 10,000 → fully automatic.
- Is your product line single-SKU or multi-variety? Multi-variety small-batch → semi-automatic; single-SKU high-volume → fully automatic.
- What is your long-term expansion plan? Planning to scale within 1–2 years → invest in fully automatic now; incremental growth → start semi-automatic and upgrade later.
- How much workshop space do you have? Space-constrained → semi-automatic; ample space → fully automatic.
- Do you have an in-house maintenance team? No → semi-automatic is easier to maintain; yes → fully automatic delivers maximum value.
🎯 TAIXIANG's Commitment: Whether you choose fully automatic or semi-automatic, we provide end-to-end support — from needs analysis and solution design to equipment delivery and after-sales service. With 15 years of PET blow molding expertise and a global footprint across 80+ countries, we are your trusted PET blow molding solution expert.
6. Conclusion: There Is No "Best" — Only "Best Fit"
There is no absolute superiority between fully automatic and semi-automatic PET blow molding machines — fully automatic represents efficiency and scale; semi-automatic represents flexibility and low entry barriers. For startups, the key is to make a rational choice based on current capacity requirements, capital budget, product mix, and long-term roadmap.
TAIXIANG MACHINE offers both fully automatic and semi-automatic series, covering a complete product range from 500ml small bottles to 20L large containers[reference:24]. Whatever stage of your entrepreneurial journey, we have proven solutions and real-world case studies to guide you.
