For nearly a decade, the global packaging sector has undergone a massive paradigm shift. As consumer brands demand higher production speeds, lower energy footprints, and flawless container structural integrity, plastic machinery suppliers have had to evolve rapidly.
At the heart of this global transformation sits TAIXIANG MACHINE (Taizhou Huangyan Taixiang Plastic Machinery Co., Ltd.). Strategically headquartered in Huangyan, Zhejiang Province—widely recognized as the "Mould Town of China"—TAIXIANG has spent the past 9 years engineering high-performance, two-step semi-automatic and fully automatic PET blow molding machines. Today, our engineering footmarks span across continents, delivering customized blow molding solutions to factories in Russia, Mongolia, South Korea, Morocco, Yemen, Senegal, Jordan, Pakistan, and beyond.
The Huangyan Legacy: Where Precision Engineering Meets Manufacturing Scale
Geographic synergy plays a massive role in industrial machine manufacturing. Operating out of Huangyan gives TAIXIANG an unmatched advantage. By blending localized, high-precision tooling and mold-making craftsmanship with our in-house mechanical R&D, we offer integrated solutions that bridge the gap between PET preform mold design and high-speed blow molding machinery manufacturing.
During our 9-year journey, TAIXIANG has transformed from a domestic supplier into a global PET blow molding machine factory. This evolution was driven by continuous capital investment in multi-axis CNC machining, rigorous quality control protocols, and a dedicated team of mechanical and pneumatic engineers who customize systems to match varying global grid voltages and factory layouts.
Unveiling TAIXIANG's Technical Blueprint: Engineering the Perfect Blow
A high-performing PET container is not merely a product of air pressure; it is the result of precise thermoforming, mechanical stretching, and pneumatic coordination. TAIXIANG’s proprietary designs address the critical pain points of modern bottling lines:

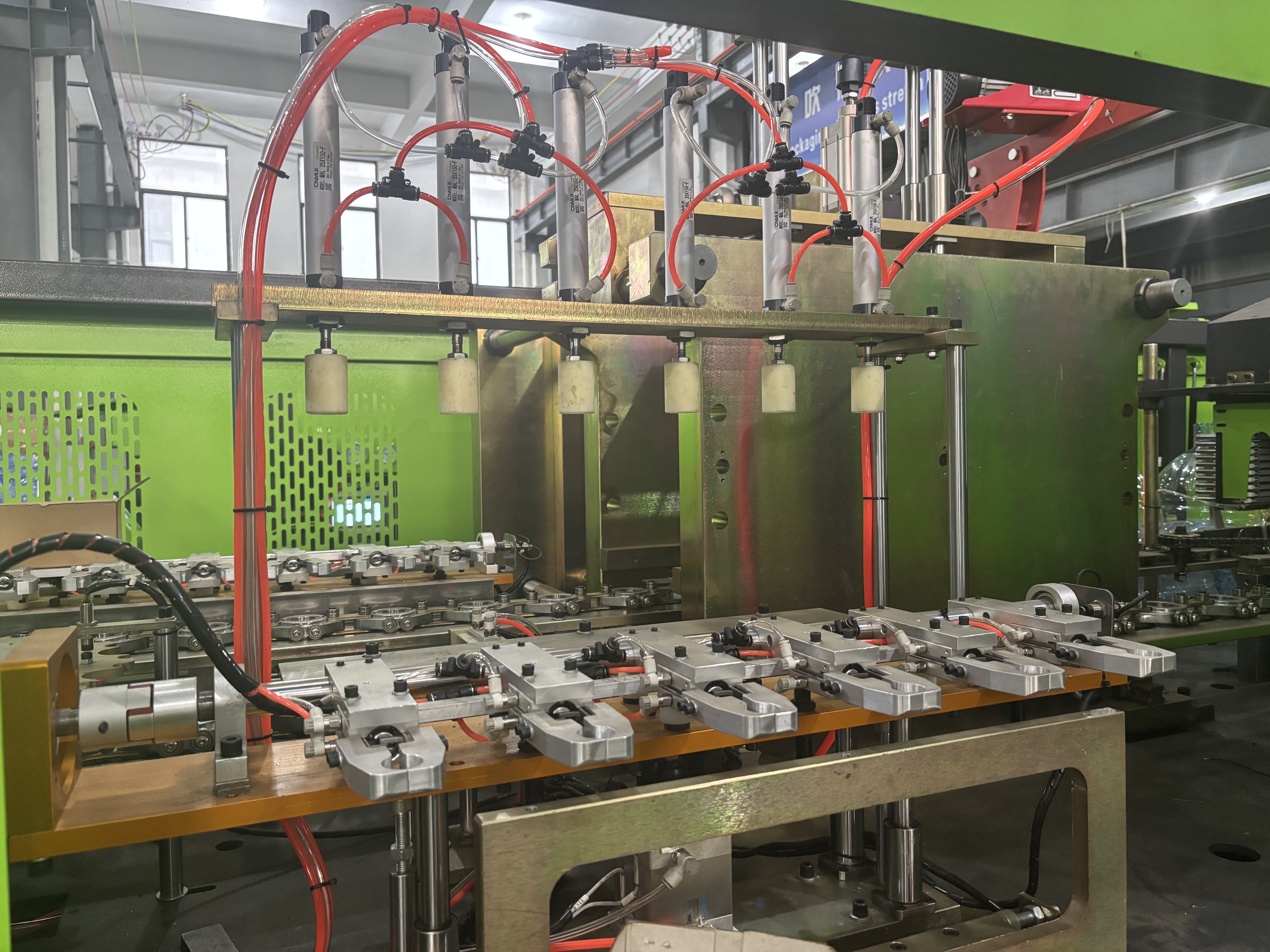

1. Multi-Servo Drive Systems: Eliminating Pneumatic Inconsistencies
Traditional blow molders rely heavily on pneumatic cylinders for preform stepping and stretching. Over time, air pressure fluctuations lead to uneven material distribution in the bottles. TAIXIANG solves this by implementing integrated multi-servo motor control. Our servo-driven systems ensure:
- Precise preform positioning with zero mechanical slip.
- Consistent stretch-rod speed, crucial for optimizing the biaxial orientation of PET molecules.
- Up to 30% reduction in electricity consumption compared to legacy all-pneumatic designs.
2. Advanced Infrared (IR) Heating Systems with Deep Penetration
Heating a PET preform—especially thick-walled preforms designed for 5L, 10L, or 20L water and oil containers—requires highly controlled heat penetration. Our machines utilize custom-configured IR heating ovens equipped with independent temperature zoning and reflective internal cavities. This ensures the core of the preform reaches its optimal glass transition temperature without crystallizing or overheating the outer surface.
3. High-Pressure Air Compensation & Pre-blow Systems
To achieve flawless definition on structural ribs, threads, and complex logos (especially for wide-mouth jars and large-capacity water gallons), TAIXIANG utilizes dual blow pressures (typically 15-bar pre-blow and 25 to 40-bar main high-pressure blow). Coupled with an advanced air compensation valve block, our systems deliver rapid, uniform pressure distribution.
Tailored Solutions for Diverse Bottling Demands
No two production lines are identical. TAIXIANG has engineered over 20 variations of PET blow molding machines to serve distinct market tiers, from small-scale water plants to high-speed automated beverage factories.
| Machine Model Category | Container Volume Range | Rated Output Capacity (BPH) | Key Features & Highlighting Tech |
|---|---|---|---|
| Full Auto 20L Gallon Molder | 5L - 20L / 5 Gallon | 600 - 850 BPH | Equipped with high-torque servo motors, engineered for thick-walled disposable large water bottles. |
| TX-138 Jar Can Auto Series | Wide-mouth Jars / Cans | 1500 - 2500 BPH | Specialized preform feeding mechanism, optimized for cosmetic, food, and wide-mouth PET containers. |
| Four-Cavity High-Speed Auto | 100ml - 2.0L | 3500 - 4500 BPH | No manual intervention required; high-precision mold clamping with excellent energy efficiency. |
| Semi-Automatic Versatile Series | 100ml - 5.0L / Custom | 500 - 1200 BPH | Low initial investment, fast mold changeovers, perfect for diverse start-up bottling lines. |
Industry FAQ: Expert Insights on Optimizing PET Bottle Production
Q: Why is consistent wall thickness hard to maintain in 5L-20L large PET bottles, and how does TAIXIANG solve it?
A: Large capacity bottles require thick preforms. If the heating is uneven, or the stretch-rod timing is off by milliseconds, the plastic will stretch unevenly, causing weak points. TAIXIANG solves this through independent internal-circulation cooling fans in the heating zone and programmable servo-stretching systems. This allows operators to fine-tune the exact stretching speed curve relative to the mold clamping cycle, securing uniform wall distribution every single time.
Q: How does TAIXIANG assist factories with rapid product switching?
A: Market trends move fast. Our blow molding molds are designed with quick-change alignment pins. An operator can swap a mold set and update the touchscreen PLC recipe configuration in under 30 minutes, drastically reducing downtime for co-packers and private label bottlers.
The Next 9 Years: Leading the rPET and Energy-Saving Revolution
As the packaging industry pivots toward sustainability, TAIXIANG is already at the forefront, engineering systems fully compatible with rPET (recycled PET) preforms. Recycled plastics demand tighter heating tolerances due to slight variances in material purity, and our advanced PID heating controller is uniquely suited to handle these fluctuations.
From the manufacturing hubs of Huangyan to bottling plants worldwide, TAIXIANG MACHINE remains committed to being more than just an equipment supplier—we are your dedicated partner in complete PET bottle blowing solutions.
