By TAIXIANG MACHINE Technical Engineering Team — Turnkey PET Blow Molding Solution Experts
Executive Summary: The Cost of Changeover Downtime in Modern PET Bottling
In the highly competitive beverage, edible oil, and personal care packaging industries, total cost of ownership (TCO) and Overall Equipment Effectiveness (OEE) are heavily influenced by production flexibility. Traditional PET stretch blow molding machines require 2 to 4 hours of scheduled downtime to complete a full bottle mold changeover. This prolonged downtime causes substantial productivity loss, high energy consumption during idling, and reduced throughput for multi-SKU manufacturing operations.

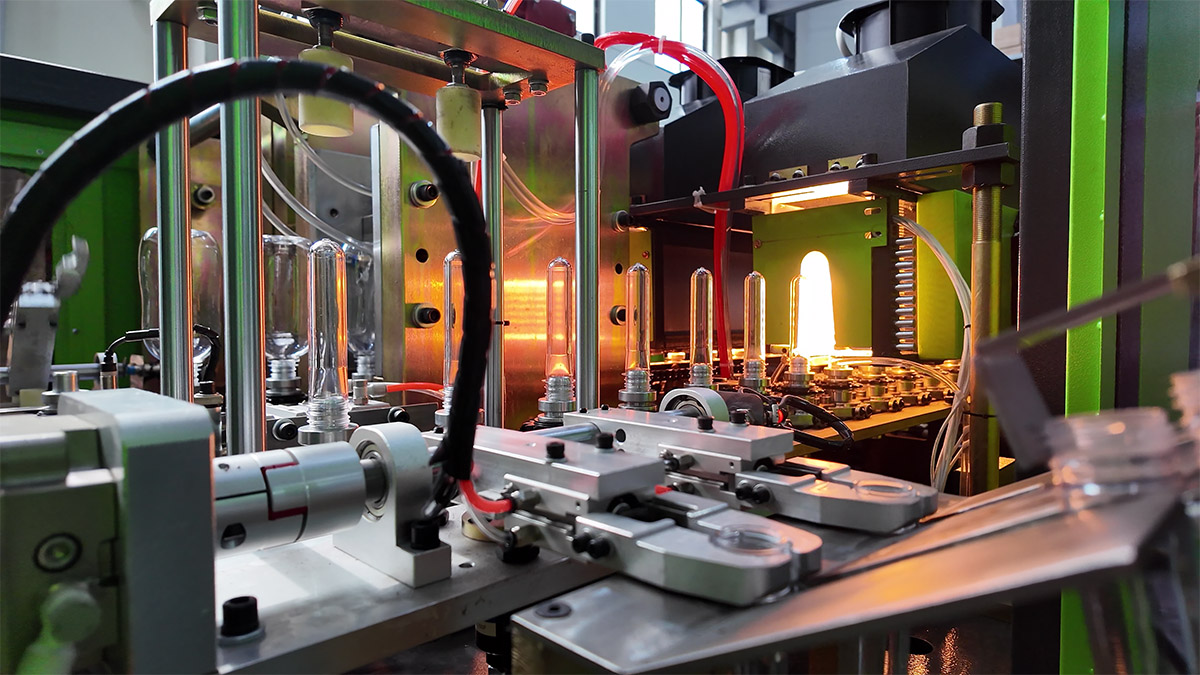

TAIXIANG MACHINE has engineered an integrated, highly efficient Fast Mold Change System (FMC System) that compresses the full mold swap-out process down to under 30 minutes. By combining quick-locking mechanical clamping, tool-less pneumatic/hydraulic couplings, self-aligning positioning guide rails, and pre-configured PLC parameter memory, TAIXIANG empowers global bottle manufacturers to transition seamlessly between small-batch runs and rapid format changes without compromising safety or alignment precision.
1. Engineering Architecture of TAIXIANG's Fast Mold Change System
Achieving a sub-30-minute changeover on high-speed automatic PET stretch blow molding machines requires a holistic design approach encompassing mechanical, thermal, pneumatic, and automation engineering. TAIXIANG's solution addresses four primary operational bottlenecks:
1.1 Tool-Less Quick-Lock Clamping Mechanism
Conventional blow molders utilize dozen-plus high-torque bolts to fix mold shells onto heavy steel platens, requiring labor-intensive manual torquing and calibration. TAIXIANG replaces rigid bolting with a high-rigidity, tool-less quick-locking clamping system. Utilizing high-tonnage wedge locks or magnetic clamping plates with safety proximity sensors, operators can lock and release mold cavities in seconds with absolute structural stability under 35-bar blowing pressure.
1.2 Rapid Plug-and-Play Cooling & Pneumatic Couplings
Fluid circuit disconnects are a frequent source of leakage and delayed changeovers. TAIXIANG's FMC system integrates centralized multi-port fluid manifolds equipped with drip-free, auto-sealing quick couplings. Chilled water lines for mold shell cooling and neck finish protection can be connected or disconnected in a single motion, completely eliminating fluid spill risks and pressure bleeding delays.
1.3 Self-Centering Guided Mold Loading Systems
Precision alignment is paramount to prevent parting line flash, uneven bottle wall thickness, and accelerated mold wear. TAIXIANG utilizes guided sliding tracks paired with heavy-duty auxiliary positioning pins. The mold assembly glides smoothly into the platen unit and locks automatically at exact zero-point mechanical coordinates, eliminating the need for manual micro-adjustments.
1.4 Smart PLC Automation & Servo Parameter Memory
Once the physical mold is installed, fine-tuning stretch rod stroke lengths, pre-blow timing, high-pressure blowing curves, and heating zone voltages usually consumes significant trial-and-error time. TAIXIANG's human-machine interface (HMI) features pre-programmed recipe management. Selecting a saved SKU instantly recall precise servo-driven positioning profiles and infrared heating profiles, ensuring first-bottle perfection with zero material waste.
2. Technical Performance Comparison: Standard vs. TAIXIANG FMC System
Below is a quantitative comparison highlighting how TAIXIANG MACHINE transforms bottling plant economics through rapid mold changeover technology:
| Performance Benchmark / Parameter | Conventional PET Blow Molder | TAIXIANG Fast Mold Change System | Direct Operational Impact |
|---|---|---|---|
| Total Mold Changeover Downtime | 120 – 240 Minutes (2–4 Hours) | ≤ 30 Minutes | Up to 87.5% reduction in production downtime |
| Tooling Requirements | Heavy hand tools, pneumatic torque wrenches | Tool-less / Single lever operation | Enhanced operator safety & zero thread stripping |
| Cooling Line Disconnect/Connect | Individual threaded hose fittings | Centralized drip-free quick manifolds | Zero water contamination, instant seal verification |
| Mechanical Alignment Method | Manual shimming & optical gauge alignment | Self-centering auto-guided rails | Micro-metric alignment precision (±0.02 mm) |
| Recipe Calibration & Start-Up Scrap | Manual trial runs (50–200 scrap preforms) | Automated PLC recipe recall (≤ 5 scrap) | Significant resin savings and immediate full-speed production |
| Overall Equipment Effectiveness (OEE) | 70% – 78% (on multi-SKU lines) | ≥ 92% Constant High OEE | Maximizes daily production capacity (BPH) |
3. Driving Multi-SKU Flexibility Across Key Bottling Applications

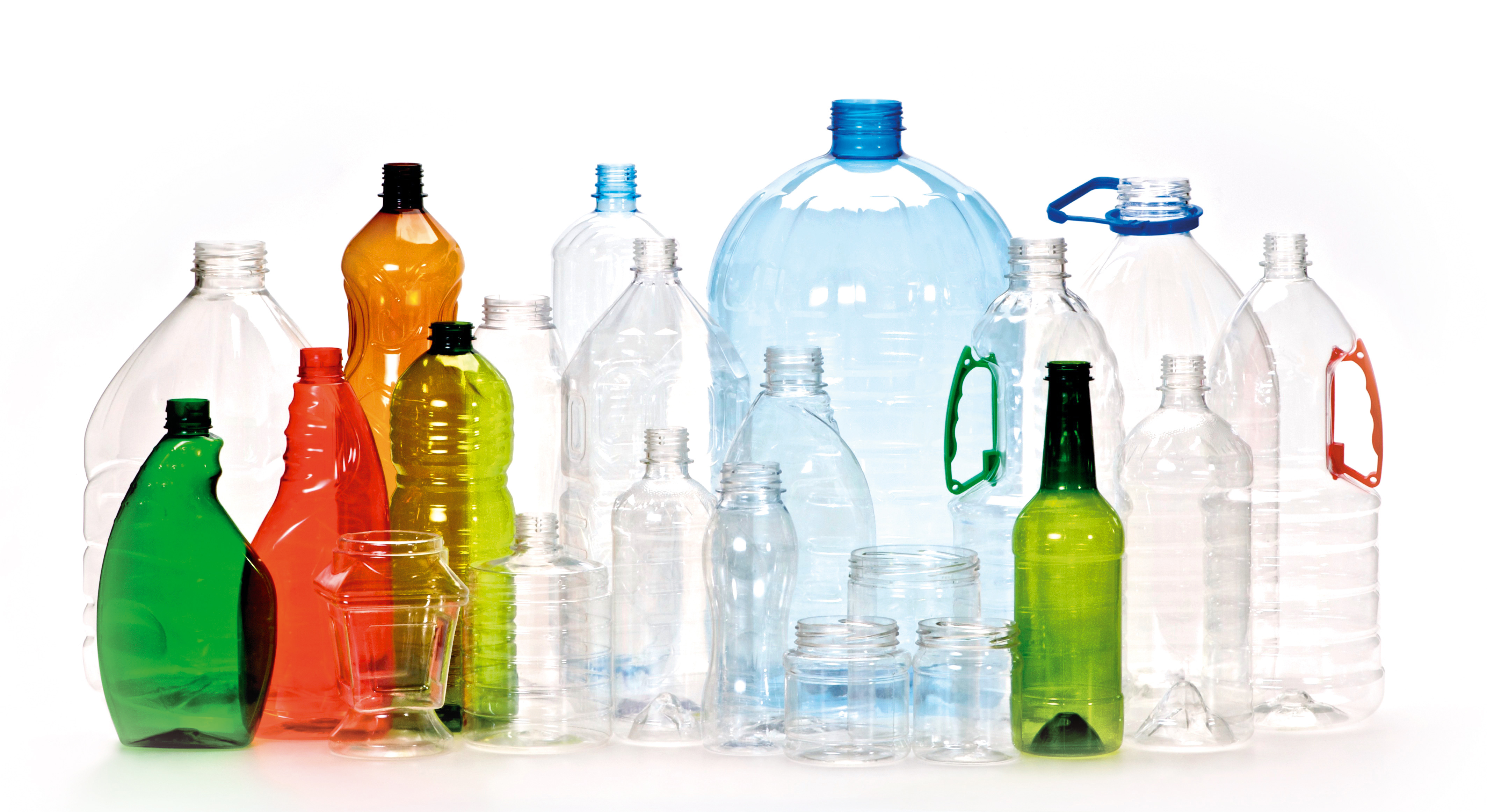

Modern consumers demand a wide variety of bottle capacities, shapes, and structural designs. TAIXIANG MACHINE’s Fast Mold Change System enables bottle manufacturers and contract packagers to switch formats rapidly across diverse product categories:
- Mineral & Purified Water Bottling: Rapidly switch between 330ml, 500ml, 1.5L light-weight beverage containers on high-speed linear blowing lines.
- Edible Oil & Household Chemicals: Effortlessly change bottle molds from 1L standard containers to heavy-duty 5L–20L handle-integrated or wide-mouth PET jars.
- Personal Care & Cosmetics: Seamlessly handle complex, asymmetric, oval, or flat shampoo and sanitizer bottles requiring tight neck thread tolerances.
- rPET & PCR Sustainable Packaging: Combine FMC versatility with TAIXIANG’s closed-loop thermal algorithms to maintain continuous yield on recycled PET runs.
4. Why Global Bottlers Trust TAIXIANG MACHINE as Their Turnkey Partner
TAIXIANG MACHINE is not just a hardware vendor; we are full-spectrum PET blowing solution experts with a global track record serving clients across 80+ countries. Our commitment to turnkey manufacturing excellence includes:
- In-House Custom Mold Engineering: High-precision CNC-machined aircraft-grade aluminum and stainless steel blow molds tailored to exact container specifications.
- Complete Line Integration: Synchronized integration of linear/rotary blow molding machines, high-pressure air compressor systems, air dryers, chillers, and preform molds.
- Global Technical Support: Remote digital diagnostics, on-site commissioning, operator training, and rapid spare parts distribution.
Frequently Asked Questions (FAQ)
Q1: Can TAIXIANG's Fast Mold Change System be retrofitted onto existing blow molders?
A: TAIXIANG’s FMC system comes standard on our latest high-speed automatic blow molding lineups. However, customized quick-clamping platens and multi-port fluid manifolds can also be engineered to upgrade older TAIXIANG machine models during line modernizations.
Q2: Does reducing mold changeover time compromise the high blowing pressure seal?
A: No. TAIXIANG utilizes high-tonnage mechanical toggles paired with hydraulic/wedge locking mechanisms. The mold base remains perfectly rigid under 3.5 to 4.0 MPa (35–40 Bar) high blowing pressure, eliminating parting line seams or air leaks.
Q3: How many operators are required to complete a mold change in 30 minutes?
A: Thanks to self-centering guide rails, tool-less quick locks, and ergonomic mold-loading carts, a single trained operator—or two for heavy multi-cavity or large-capacity molds—can safely complete the full format switch within 30 minutes.
Conclusion
Reducing equipment downtime is the fastest path to increasing profitability in modern plastic packaging manufacturing. TAIXIANG MACHINE's Fast Mold Change System empowers bottling factories to eliminate production bottlenecks, elevate plant OEE to over 92%, and react flexibly to market demands. Partner with TAIXIANG MACHINE to transform your PET packaging efficiency today.
