Complete TAIXIANG PET Blow Molding Machine Lineup: Professional Edible Oil Bottle Production Solutions from 5L to 20L

Introduction: The Evolution of Large-Capacity PET Packaging in the Edible Oil Industry

In the modern edible oil packaging sector, the demand for large-capacity containers ranging from 5L to 20L has surged. Producers require packaging that ensures structural integrity, food safety, and cost efficiency. As a premier manufacturing factory specializing in PET blow molding technologies, TAIXIANG MACHINE delivers a complete lineup engineered to meet these rigorous industrial demands.

This technical analysis explores the engineering innovations, heating physics, and automation frameworks that make TAIXIANG the industry benchmark for professional edible oil bottle production solutions.

1. Engineering Challenges in 5L-20L Large-Capacity PET Bottle Production

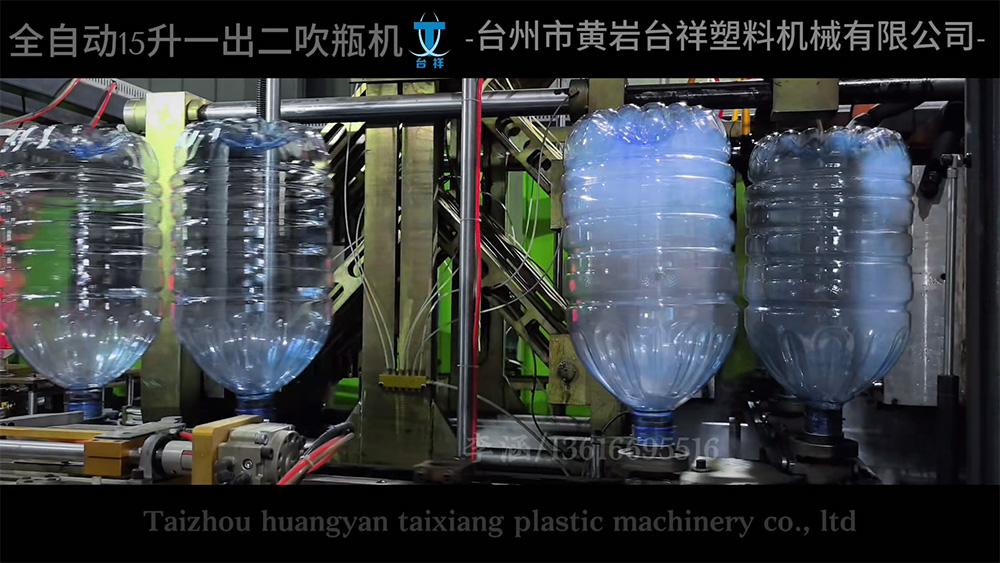

Manufacturing large-format PET bottles (such as 5L, 10L, 15L, and 20L water/oil bottles or Jerris cans) introduces distinct thermodynamic and mechanical challenges compared to standard beverage bottles:

• Wall Thickness Uniformity: Large preforms possess thick walls. Ensuring equal material distribution across the shoulders, body, and base prevents structural weak points.
• Preform Penetration Heating: Standard infrared heating cannot deeply penetrate a 5L-20L preform core without overheating the outer surface.
• High-Pressure Clamping Requirements: The massive surface area of a 20L mold requires immense clamping force to prevent parting line defects and flash during the high-pressure ($3.5 \text{ to } 4.0 \text{ MPa}$) blowing phase.

2. TAIXIANG’s Core Technological Solutions & Innovations

To address these challenges, TAIXIANG MACHINE integrates proprietary automation and thermodynamic systems into our linear and rotary blow molding lineups.

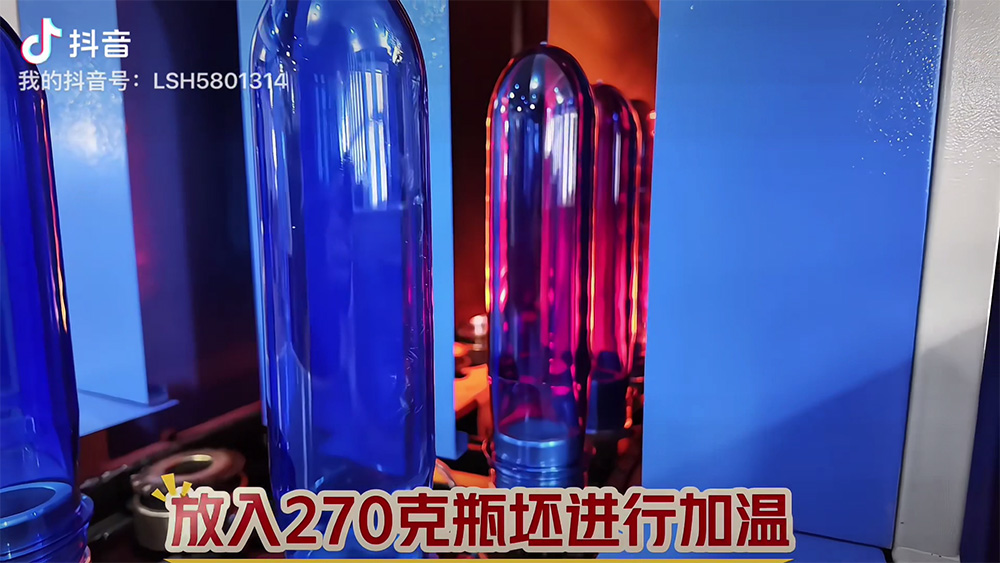

A. Advanced Layer-by-Layer Infrared Heating Systems

Our machines utilize an optimized, multi-zone infrared heating tunnel with specialized quartz lamps. The system features independent ventilation and heat-reflection plates, ensuring the core of thick-walled preforms reaches the optimal glass transition temperature ($T_g \approx 81^\circ\text{C} - 86^\circ\text{C}$) uniformly without crystallization.

B. Precision High-Pressure Clamping & Toggle Mechanism

TAIXIANG incorporates a heavy-duty hydraulic or pneumatic-hydraulic hybrid clamping system. Supported by a rigid toggle mechanism, it guarantees that the mold remains perfectly sealed under extreme pressures, ensuring flawless neck finishes and seamless bottle bases.

C. Servo-Driven Stretching System

"Precision stretching is the secret to high-yield large bottle production."

By replacing traditional pneumatic cylinders with high-torque servo motors for the stretch rods, TAIXIANG machines achieve precise control over the speed and distance of the stretch. This maximizes the biaxial orientation of the PET molecules, significantly enhancing the top-load strength of the final edible oil bottle.

3. The TAIXIANG Lineup: From 5L to 20L Turnkey Production Solutions

We provide tailored configurations depending on your factory’s output requirements:

4. Optimization for Smart Factories: Industry 4.0 Integration

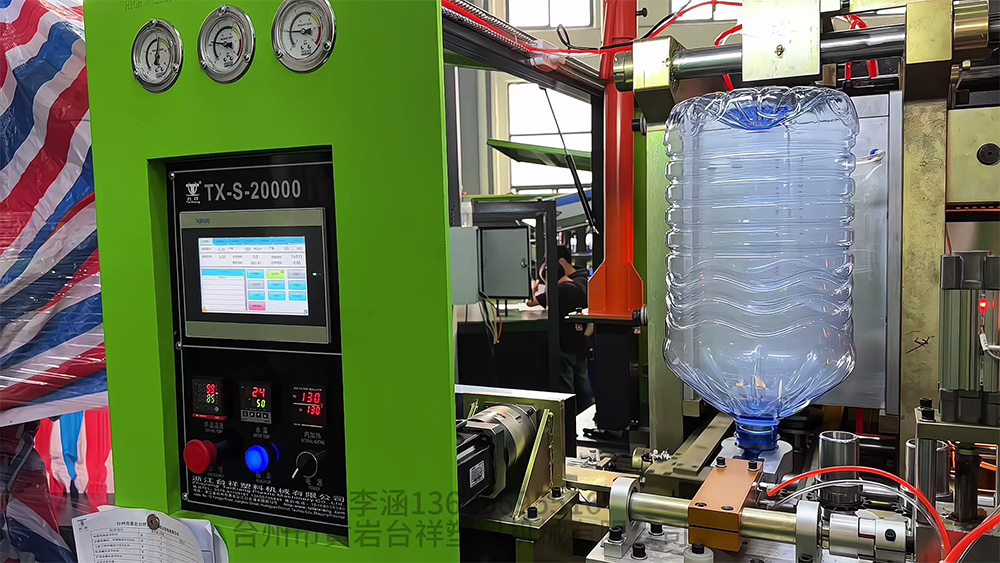

Designed for global export, TAIXIANG machines are fully compatible with modern industrial IoT standards. Featuring human-machine interfaces (HMI) powered by Siemens or Delta PLC systems, operators can monitor pressure curves, heating temperatures, and cycle times in real-time. This algorithmic precision minimizes scrap rates to less than 0.3%, driving down the total cost of ownership (TCO) for edible oil packaging plants worldwide.

Conclusion: Partner with a Professional PET Blow Molding Specialist

When dealing with large-capacity 5L to 20L packaging, you need more than a machine vendor—you need a solutions partner. TAIXIANG MACHINE combines rigorous mechanical engineering with factory-wide automation layouts to deliver highly efficient, stable, and cost-effective edible oil bottle production lines.

Contact our engineering team today to customize your automated factory layout and elevate your production capabilities.
