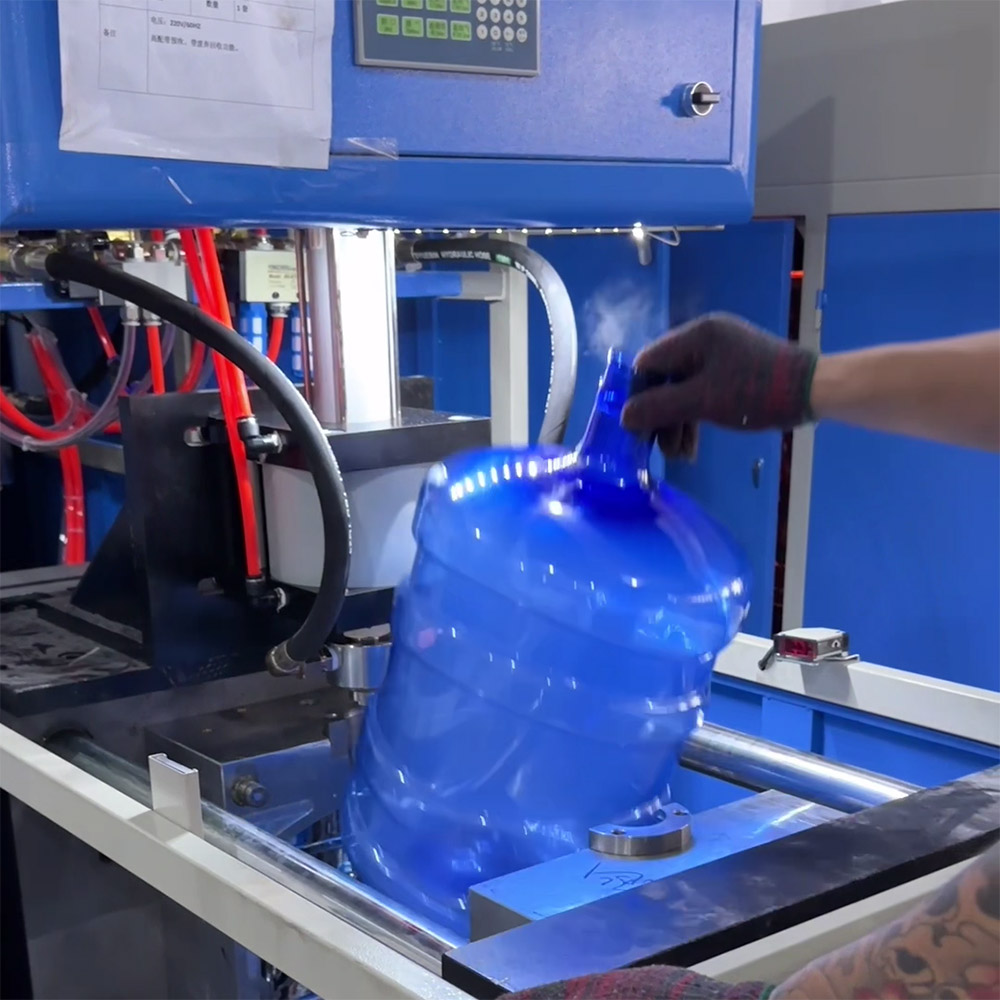

5 Gallon Water Bottle Production Solutions: TAIXIANG’s Heavy-Duty Blow Molding Machine Performance
Executive Summary: The demand for large-format water containers, specifically 5-gallon (18.9-liter) PC/PET bottles, continues to surge across global commercial and residential hydration sectors. However, manufacturing large-volume PET containers presents severe technical challenges: thick preform walls, thermal penetration bottlenecks, severe mold stress, and container base deformation. TAIXIANG MACHINE delivers end-to-end 5-gallon water bottle production solutions backed by our industry-leading heavy-duty PET stretch blow molding machine architecture.
1. The Engineering Challenge of 5-Gallon PET Water Bottle Production
Unlike standard 500ml or 1.5L beverage bottles, producing a 5-gallon (18.9L) PET container requires managing extreme material mass and stress distribution. A standard 5-gallon preform weighs between 600g and 750g, featuring wall thicknesses up to 8mm–10mm.
Key technical hurdles in high-volume 5-gallon PET blowing include:
- Thermal Penetration Variance: Standard infrared systems only heat the outer surface of thick preforms, causing internal thermal lag, stress whitening, or structural failure under drop tests.
- Mold Clamping & Lock Forces: The massive surface area of a 5-gallon container generates massive internal expansion force during high-pressure blowing (30–40 bar). Insufficient clamping results in excessive parting lines, wall thickness asymmetry, and mold leakage.
- Base & Handle Ergonomics: Large containers require structural base designs (such as champagne bottoms or heavy ribbing) and optional built-in handles to withstand stacking pressure (top-load) without collapsing.
2. TAIXIANG Heavy-Duty PET Blow Molding Machine Architecture
At TAIXIANG MACHINE, our heavy-duty PET stretch blow molding machines are engineered specifically to solve the mechanical and thermodynamic demands of large-format container production. We integrate state-of-the-art automation with robust mechanical engineering.
2.1 Multi-Zone Deep Penetration Infrared Preheating Oven
TAIXIANG's specialized 5-gallon reheat ovens utilize Short-Wave Near-Infrared (NIR) technology paired with custom ceramic reflective shields. The oven design incorporates independent multi-zone PID temperature regulation, precise 360-degree preform rotation, and targeted neck cooling channels to protect neck finish geometry from heat deformation.
2.2 High-Tonnage Hydraulic-Servo Hybrid Clamping System
To resist the huge forces during 35-bar high-pressure blowing, TAIXIANG machines feature a reinforced toggle clamping mechanism driven by precision servo systems. This guarantees zero mold breathing, crisp parting lines, and structural stability across continuous 24/7 manufacturing operations.
2.3 Dual-Stage Stretch & Air Recovery System
Equipped with high-precision servo stretching rods, TAIXIANG blow molding machines deliver millimetric control over bi-axial orientation. Furthermore, our integrated high-pressure air recovery loop reclaims up to 25% of exhaust air to power low-pressure pneumatic actuation, drastically lowering operational electricity costs (OPEX).
3. Technical Specifications & Performance Baseline
Below is a performance comparison between TAIXIANG’s heavy-duty 5-gallon blow molding machine solutions and conventional market alternatives:
| Performance Metric / Parameter | Conventional Blow Molding Equipment | TAIXIANG Heavy-Duty 5 Gallon Solution |
|---|---|---|
| Target Container Capacity | 3 Gallon - 5 Gallon (10L - 20L) | 5 Gallon (18.9L) & Large Jar Formats |
| Preform Wall Heating Method | Surface IR / Standard Heating | Deep-Penetration NIR + Multi-Zone Equalization |
| Clamping Structure | Standard Mechanical Toggle | Reinforced Heavy-Duty Servo-Hydraulic Lock |
| Production Yield Rate | 95.0% - 97.0% | ≥ 99.5% High Efficiency Yield |
| Energy Efficiency | High Power Dissipation | Up to 25% Air Recovery & Eco NIR Oven |
| Top-Load & Drop Strength | Variable due to wall thickness delta | Optimized Bi-Axial Tensile Distribution |
4. Why Global Bottlers Choose TAIXIANG MACHINE as Their Turnkey Partner
As a leading Chinese PET blowing machine factory and direct manufacturer, TAIXIANG MACHINE provides complete turnkey 5-gallon water bottle production line solutions, including preform design, mold customized manufacturing, auxiliary air compressor system integration, and automatic bottle handling units.
- Customized Mold Engineering: Precision CNC-machined aluminum/steel blow molds tailored for custom bottle shapes, handle integration, and structural ribbing.
- Turnkey Water Bottling Line Integration: Seamlessly connect TAIXIANG blow molders with bottle rinsing, 5-gallon filling, capping, and neck-labeling machinery.
- International Safety & Quality Compliance: Built to CE standards with complete safety enclosures, emergency stops, and user-friendly multi-language HMI control interfaces.
- Global Engineering Support: Complete lifecycle support, from pre-shipment Factory Acceptance Testing (FAT) to on-site commissioning, operator training, and rapid spare parts supply.
5. Conclusion
Achieving high profitability in 5-gallon water bottling requires robust, reliable, and energy-efficient machinery capable of producing durable, visually clear PET containers. TAIXIANG MACHINE’s heavy-duty PET blow molding machines deliver the mechanical strength, thermal accuracy, and high yield rates that industrial water suppliers demand. Contact TAIXIANG MACHINE today to receive a custom engineering proposal and quotation for your 5-gallon water bottle production line.
